7-188275-6

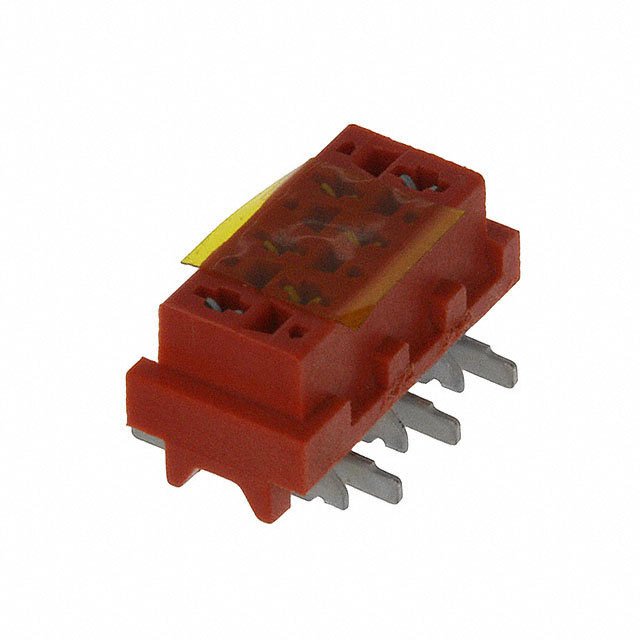

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7-188275-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7-188275-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7-188275-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FMALE-ON-BRD 6POS VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 900 pcs | 1800 pcs | 2700 pcs | 6300 pcs | 9000 pcs |
|---|---|---|---|---|---|
| $0.30 | $0.257 | $0.249 | $0.24 | $0.228 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 7-188275-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FMALE-ON-BRD 6POS VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87229 pcs | Data sheet | 188275 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Micro-MaTch | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | 71882756 A99474TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 41 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.209" (5.30mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 6 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose |
