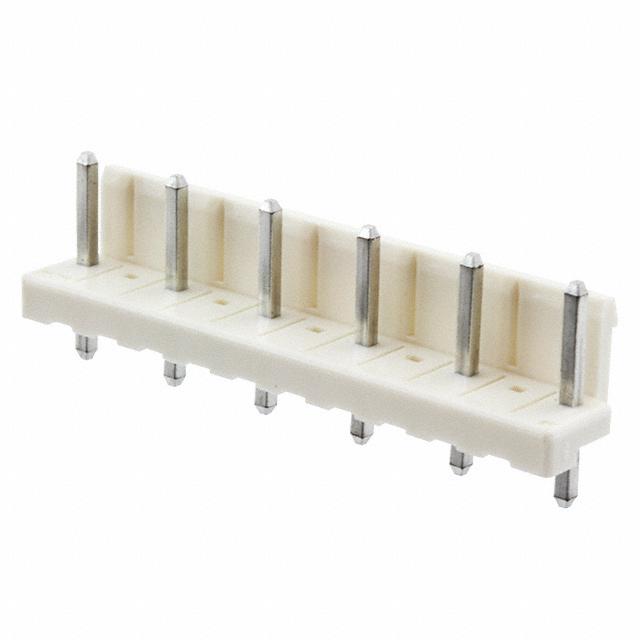

7-1123724-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7-1123724-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7-1123724-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7-1123724-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 7.92EP HDR ASSY 6P NATURAL GWT |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.153 | $0.145 | $0.102 | $0.087 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.073 | $0.062 | $0.058 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7-1123724-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 7.92EP HDR ASSY 6P NATURAL GWT | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 398822 pcs | Data sheet | 1123724 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | Economy Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.567" (14.40mm) |
| Other Names | A117730 | Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | 6 |
| Number of Positions | 11 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.362" (9.20mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Glow Wire Compliant |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 11 position 0.156" (3.96mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | 0.303" (7.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
