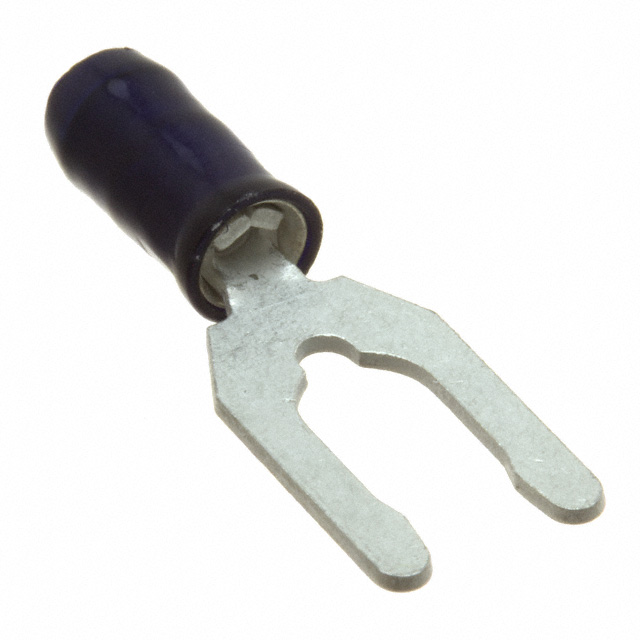

696471-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 696471-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 696471-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 696471-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #10 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.212 | $0.197 | $0.178 | $0.158 | $0.151 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.138 | $0.132 | $0.109 | $0.099 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 696471-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #10 BLU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 241292 pcs | Data sheet | 696471 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.343" (8.71mm) | Tongue Inside Opening | 0.190" (4.83mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 696471-1-ND A136448 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Termination | 0.283" (7.19mm) | Length - Ring Center to Termination | - |
| Length - Overall | 1.010" (25.65mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) | Insulation | Insulated |
| Features | - | Detailed Description | Blue 10 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Phosphor Bronze | Contact Finish | Tin |
| Color | Blue |
