696020-1

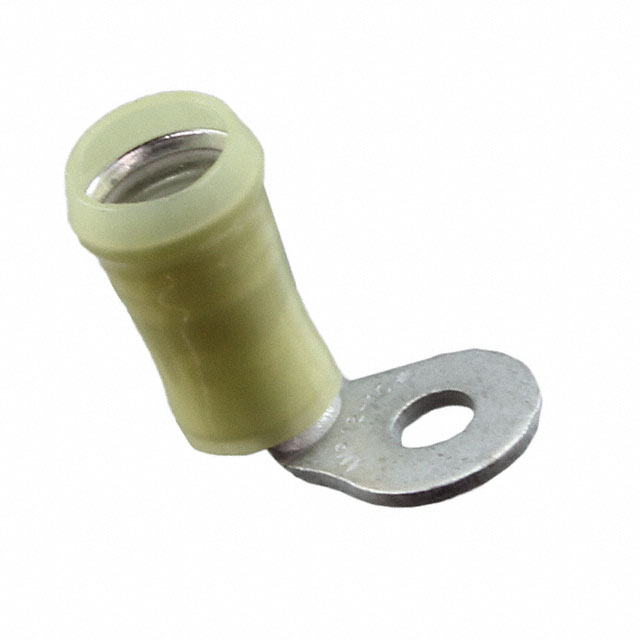

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 696020-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 696020-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 696020-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 10-12AWG #6 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.909 | $0.872 | $0.799 | $0.763 | $0.727 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.636 | $0.618 | $0.527 | $0.491 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 696020-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 10-12AWG #6 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71154 pcs | Data sheet | 696020-1 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.375" (9.53mm) | Thickness | 0.040" (1.02mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 6 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 696020-1-ND A136429 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 18 Weeks |
| Length - Overall | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 6 Stud Circular 10-12 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
