Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 647676-3

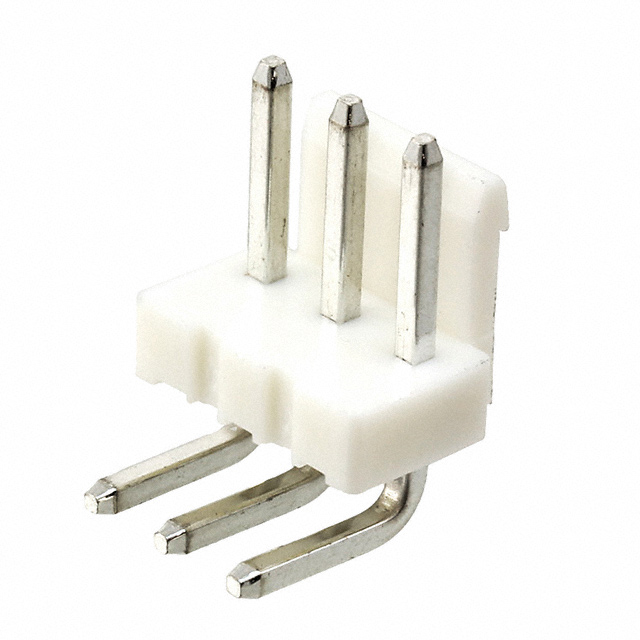

647676-3

647676-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 647676-3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 647676-3
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 3POS R/A .156 TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 656316 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs
$0.084$0.078$0.055
500 pcs1000 pcs5000 pcs
$0.047$0.039$0.034

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.084

Product parameter

Part Number 647676-3 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 3POS R/A .156 TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 656316 pcs Data sheet 647676 Drawing
Category Connectors, Interconnects Voltage Rating 250VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall Series Economy Power
Row Spacing - Mating - Pitch - Mating 0.156" (3.96mm)
Packaging Bulk Overall Contact Length -
Other Names 647676-3-ND
A114289		 Operating Temperature -25°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 3 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.339" (8.61mm) Insulation Color White
Ingress Protection - Features -
Fastening Type Friction Lock Detailed Description Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm)
Current Rating 7.5A Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.142" (3.60mm) Contact Length - Mating 0.338" (8.59mm)
Contact Finish Thickness - Post 80.0µin (2.03µm) Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose, Industrial, Lighting
