6469296-1

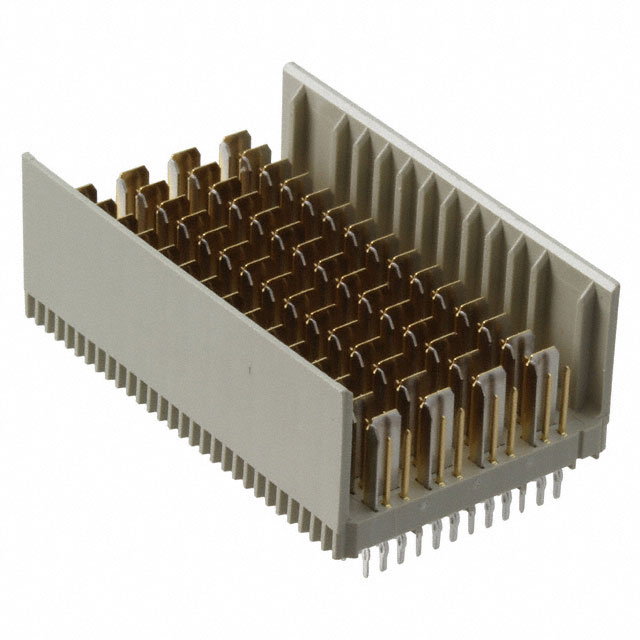

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6469296-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6469296-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6469296-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | HM ZD 4 PAIR PIN ASSEMBLY, 5.3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 13 pcs | 26 pcs | ||
|---|---|---|---|---|---|
| $10.78 | $9.731 | $9.323 | |||
| 52 pcs | 104 pcs | 260 pcs | |||
| $8.741 | $8.449 | $7.983 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6469296-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HM ZD 4 PAIR PIN ASSEMBLY, 5.3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4367 pcs | Data sheet | 6469296 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit | Series | Z-PACK HM-Zd |
| Pitch | 0.098" (2.50mm) | Packaging | Tube |
| Other Names | 6469296-1-ND A115605 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 8 | Number of Positions Loaded | All |
| Number of Positions | 180 | Number of Columns | 15 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 0.700A | Contact Layout, Typical | 120 Signal, 60 Ground |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | Backplane | Connector Type | Header, Male Pins and Blades |
| Connector Style | High Speed | Color | - |
