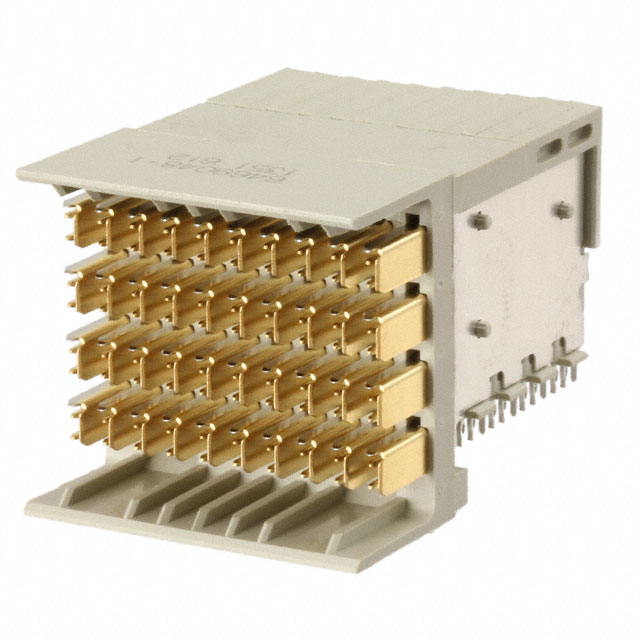

6469048-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6469048-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6469048-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6469048-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 80POS R/A HM-ZD TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | ||
|---|---|---|---|---|---|
| $18.023 | $16.27 | $15.588 | |||
| 60 pcs | 100 pcs | 260 pcs | |||
| $14.614 | $14.127 | $13.347 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6469048-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 80POS R/A HM-ZD TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2824 pcs | Data sheet | 6469048 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit | Series | Z-PACK HM-Zd |
| Pitch | 0.098" (2.50mm) | Packaging | Tube |
| Other Names | 6469048-1-ND A115603 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 8 | Number of Positions Loaded | All |
| Number of Positions | 120 | Number of Columns | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 0.700A | Contact Layout, Typical | 80 Single Signal, 40 Ground |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | Daughtercard | Connector Type | Header, Male Pins and Blades |
| Connector Style | High Speed | Color | - |
