645952-1

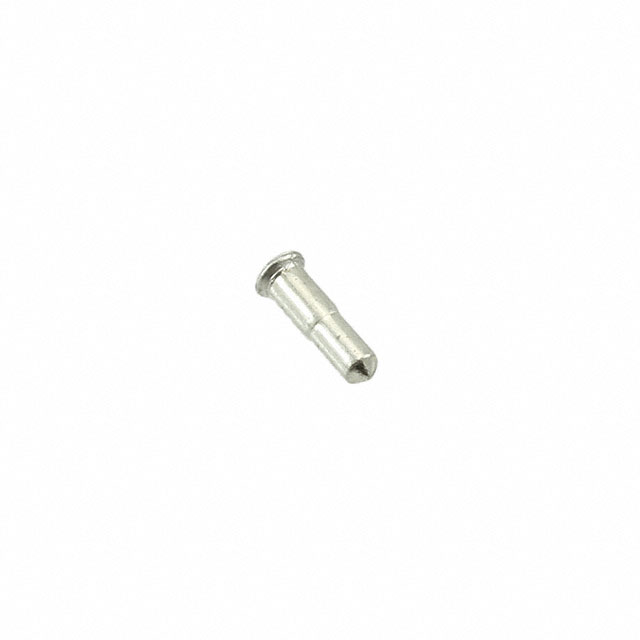

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 645952-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 645952-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 645952-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .014-.026 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.095 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 645952-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN RCPT .014-.026 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 196765 pcs | Data sheet | 645952 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.100" ~ 0.170" (2.54mm ~ 4.32mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | A109102 | Operating Temperature | -65°C ~ 125°C |
| Mounting Hole Diameter | 0.053" ~ 0.055" (1.35mm ~ 1.40mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Length - Overall | 0.184" (4.67mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | 0.075" (1.91mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.014" ~ 0.026" (0.36mm ~ 0.66mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Tin |
| Board Thickness | 0.031" ~ 0.093" (0.79mm ~ 2.36mm) | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) |
