644694-2

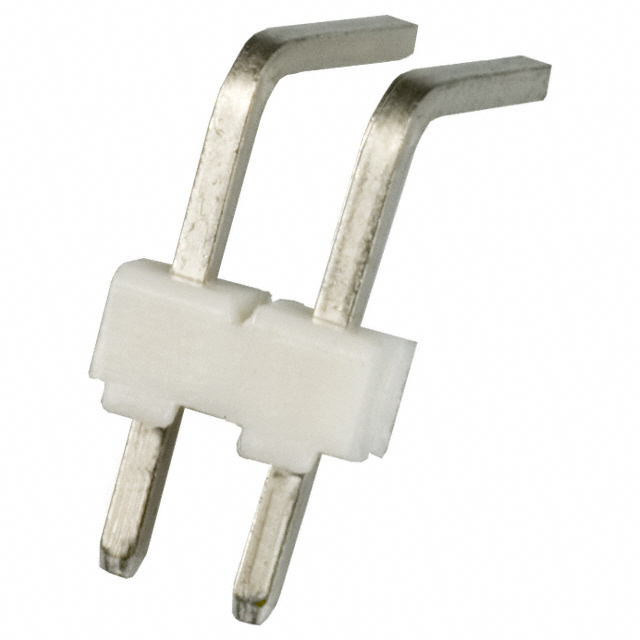

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 644694-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 644694-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 644694-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER RTANG 2POS .100 TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 644694-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER RTANG 2POS .100 TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5151 pcs | Data sheet | 644694 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | MTA-100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A19410 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | - |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.260" (6.60mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | General Purpose |
