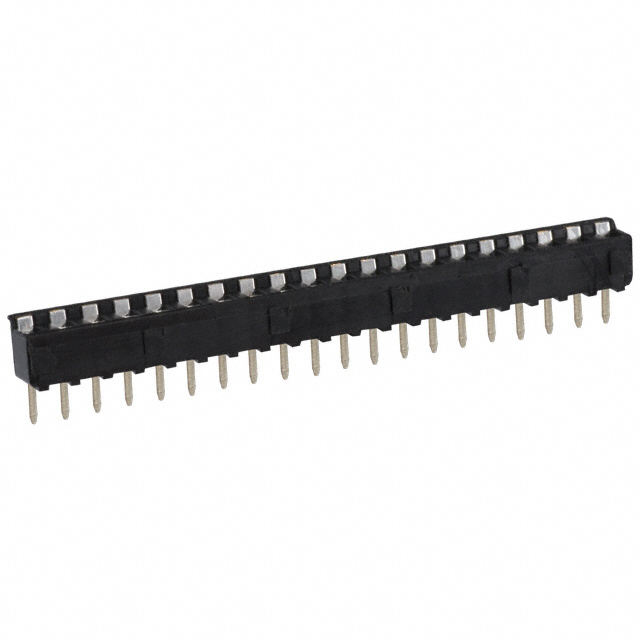

643652-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 643652-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 643652-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 643652-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SOCKET SIP 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 643652-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SOCKET SIP 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4887 pcs | Data sheet | 643652 Drawing |
| Category | Connectors, Interconnects | Type | SIP |
| Termination Post Length | 0.130" (3.30mm) | Termination | Solder |
| Series | Diplomate DL | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 6436523 | Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 20 (1 x 20) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic, Glass Filled |
| Features | Closed Frame | Contact Resistance | - |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
