643430-1

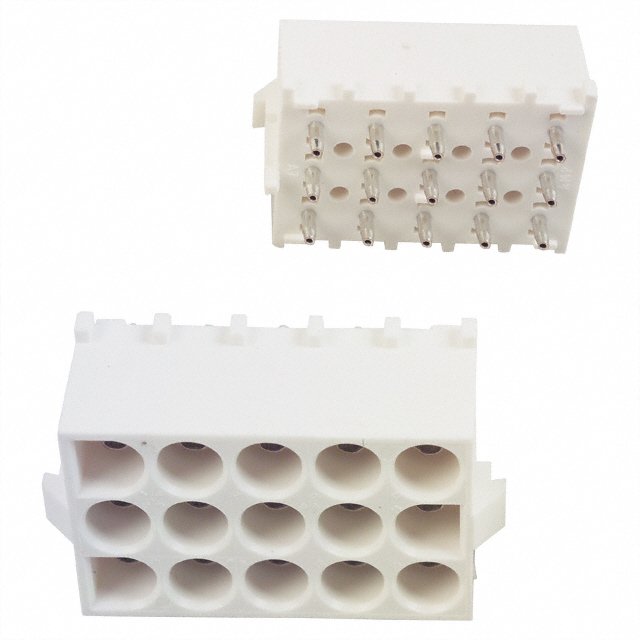

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 643430-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 643430-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 643430-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 15POS VERT .250 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.227 | $1.179 | $0.982 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.835 | $0.712 | $0.638 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 643430-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 15POS VERT .250 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55137 pcs | Data sheet | Universal MATE-N-LOK Instr Sheet643430 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Universal MATE-N-LOK | Row Spacing - Mating | 0.250" (6.35mm) |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Other Names | 643430-1-ND 6434301 A25270 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.580" (14.73mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | 15 Position Header Connector 0.250" (6.35mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.155" (3.94mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
