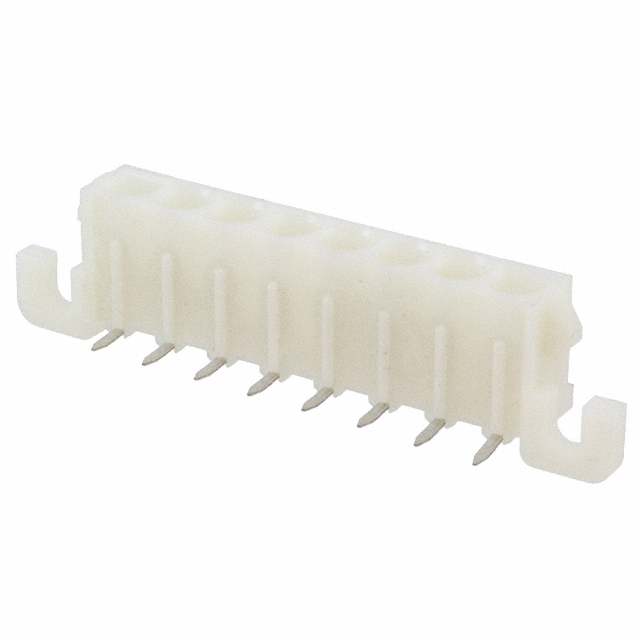

643237-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 643237-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 643237-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 643237-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 08P UMNL HDR ASSY R/A NATL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1120 pcs | ||||
|---|---|---|---|---|---|
| $0.981 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 643237-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 08P UMNL HDR ASSY R/A NATL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31867 pcs | Data sheet | Universal MATE-N-LOK Instr Sheet643237 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Universal MATE-N-LOK | Row Spacing - Mating | - |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Other Names | 643237-1-ND A114183 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.360" (9.14mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | 8 Position Header Connector 0.250" (6.35mm) Through Hole, Right Angle Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.160" (4.06mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
