641976-1

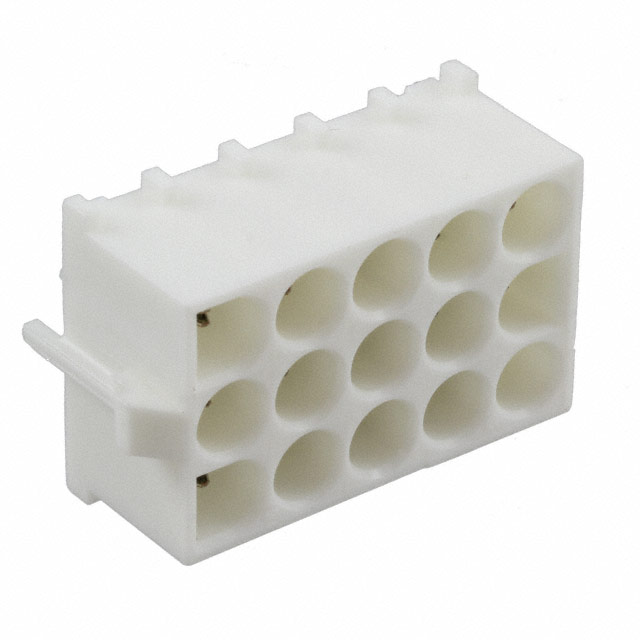

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 641976-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 641976-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 641976-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 15POS VERT .250 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.778 | $0.706 | $0.605 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.505 | $0.432 | $0.383 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 641976-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 15POS VERT .250 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80074 pcs | Data sheet | Universal MATE-N-LOK Instr Sheet641976 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Universal MATE-N-LOK |
| Row Spacing - Mating | 0.250" (6.35mm) | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 406042267 641976-1-ND 6419761 A25239 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.550" (13.97mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 15 position 0.250" (6.35mm) | Current Rating | 12A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.155" (3.94mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
