640501-2

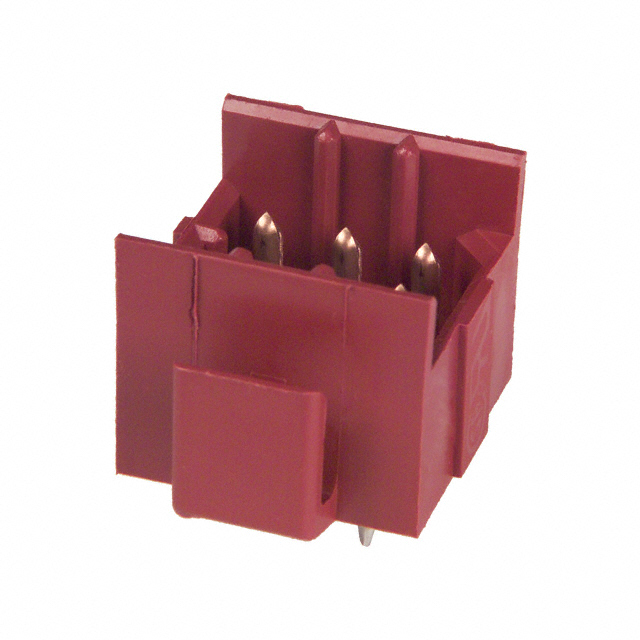

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 640501-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 640501-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 640501-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER .062 9POS PCB 30AU |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.973 | $3.613 | $3.071 | $2.619 | $2.403 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 640501-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER .062 9POS PCB 30AU | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 12543 pcs | Data sheet | 640501 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MR (Miniature Rectangular) |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 6405012 A14209 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.531" (13.50mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 9 position 0.165" (4.20mm) |
| Current Rating | 6A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | 0.220" (5.59mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose |
