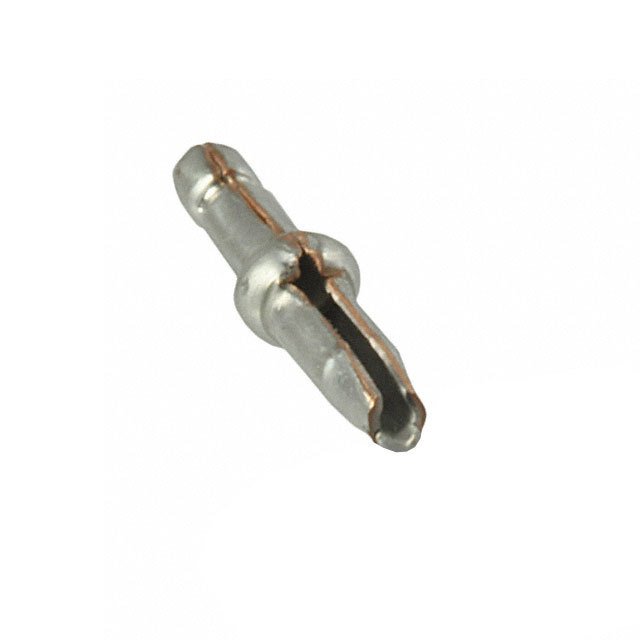

60809-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 60809-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 60809-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 60809-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PC PIN CIRC 0.058DIA TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 30000 pcs | 60000 pcs | |||
|---|---|---|---|---|---|
| $0.029 | $0.028 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 60809-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.058DIA TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 881653 pcs | Data sheet | 60809 |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | Single Post | Terminal Style | Flanged |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia | Packaging | Tape & Reel (TR) |
| Other Names | 60809-1-ND 608091 A100701TR |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.058" ~ 0.062" (1.47mm ~ 1.57mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 12 Weeks |
| Length - Overall | 0.380" (9.65mm) | Length - Below Flange | 0.150" (3.81mm) |
| Length - Above Flange | 0.160" (4.06mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.090" (2.29mm) | Detailed Description | Single Post Terminal Connector Through Hole Tin 0.058" (1.47mm) Dia |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.062" ~ 0.093" (1.57mm ~ 2.36mm) |
