60803-1

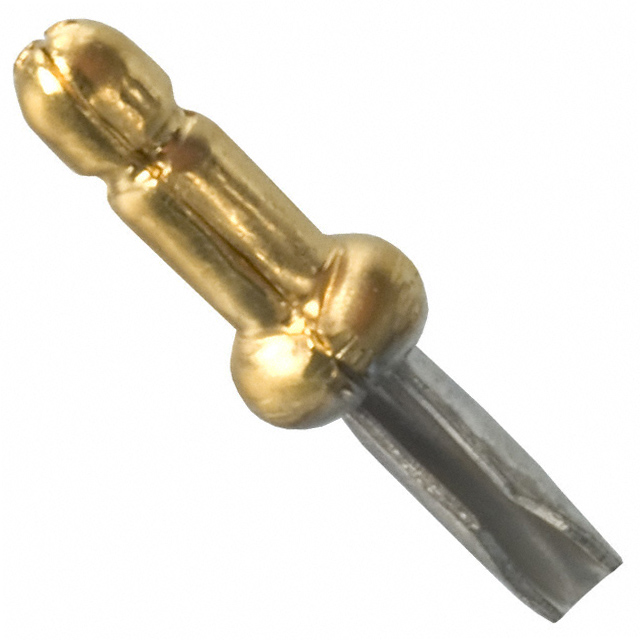

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 60803-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 60803-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 60803-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PC PIN CIRC 0.058DIA GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.406 | $0.357 | $0.336 | $0.322 | $0.308 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.28 | $0.252 | $0.224 | $0.203 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 60803-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.058DIA GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 100431 pcs | Data sheet | 60803 |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | Single Post | Terminal Style | Flanged |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia | Packaging | Bulk |
| Other Names | 608031 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.046" ~ 0.050" (1.17mm ~ 1.27mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 12 Weeks |
| Length - Overall | 0.375" (9.53mm) | Length - Below Flange | 0.150" (3.81mm) |
| Length - Above Flange | 0.160" (4.06mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.090" (2.29mm) | Detailed Description | Single Post Terminal Connector Through Hole Gold 0.058" (1.47mm) Dia |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Board Thickness | 0.062" ~ 0.093" (1.57mm ~ 2.36mm) |
