6-520314-0

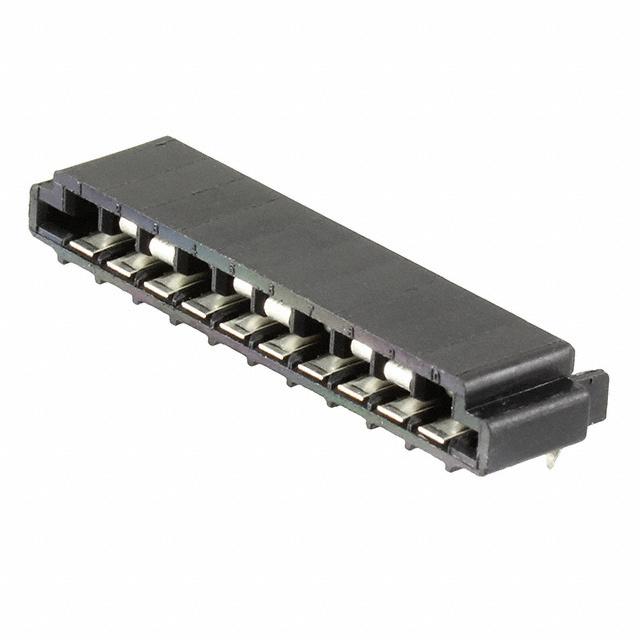

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6-520314-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6-520314-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6-520314-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FFC TOP 10POS 2.54MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 135 pcs |
|---|---|---|---|---|---|
| $0.416 | $0.366 | $0.344 | $0.33 | $0.316 | |
| 270 pcs | 540 pcs | 1080 pcs | 2565 pcs | ||
| $0.287 | $0.258 | $0.23 | $0.208 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6-520314-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FFC TOP 10POS 2.54MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 114148 pcs | Data sheet | 520314 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Kinked Pin | Series | Triomate |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 6-520314-0-ND A115608 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 25 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 18 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyester Thermoplastic, Glass Filled | Housing Color | Black |
| Height Above Board | 0.190" (4.83mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Detailed Description | 10 Position FFC, FPC Connector Contacts, Top 0.100" (2.54mm) Through Hole, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
