5788796-3

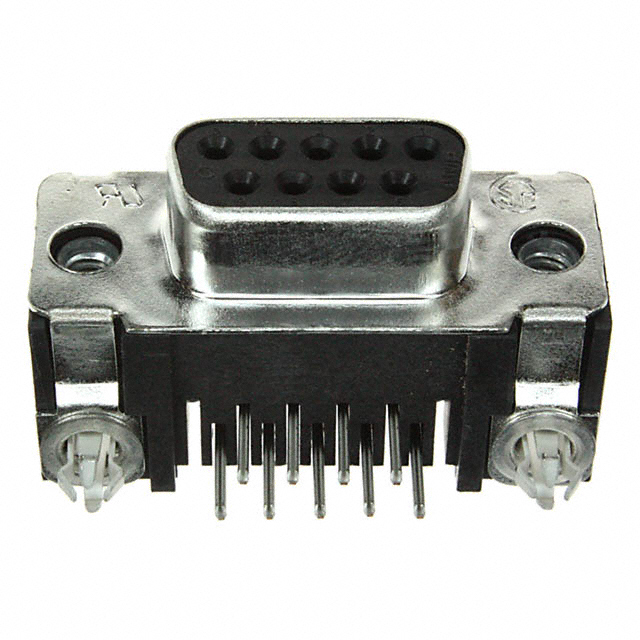

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5788796-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5788796-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5788796-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 34 pcs | 51 pcs | |
|---|---|---|---|---|---|
| $1.026 | $0.986 | $0.904 | $0.863 | ||
| 102 pcs | 255 pcs | 510 pcs | 1003 pcs | ||
| $0.822 | $0.719 | $0.698 | $0.616 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5788796-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60970 pcs | Data sheet | 5788796 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tube |
| Other Names | 57887963 A35135 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.318" (8.08mm) |
