5747846-3

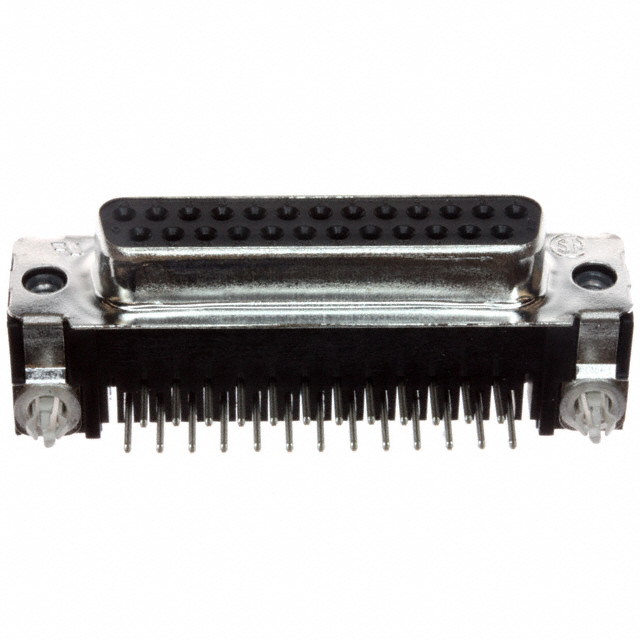

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5747846-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5747846-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5747846-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 25POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 65 pcs | |
|---|---|---|---|---|---|
| $2.623 | $2.513 | $2.295 | $2.185 | ||
| 130 pcs | 260 pcs | 520 pcs | 1040 pcs | ||
| $2.076 | $1.857 | $1.748 | $1.53 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5747846-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25558 pcs | Data sheet | 5747846-2AMPLIMITE Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tray |
| Other Names | 57478463 A32125 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Ground Strap | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.318" (8.08mm) |
