5747838-4

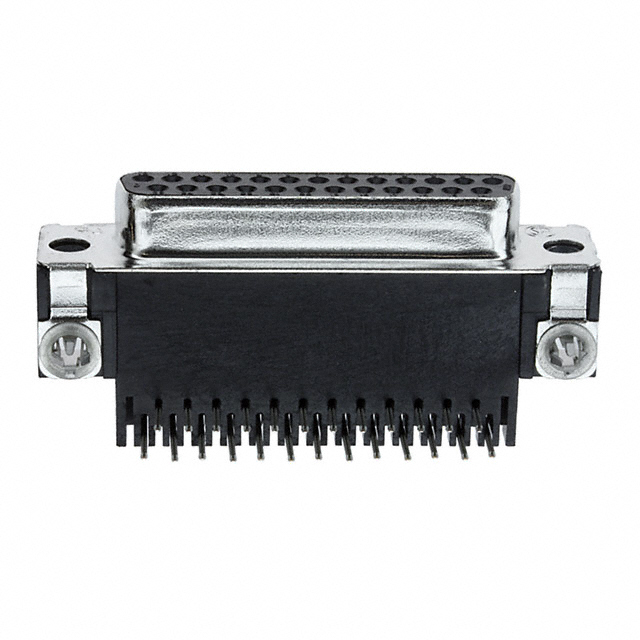

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5747838-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5747838-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5747838-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 25POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.431 | $2.328 | $2.126 | $2.024 | $1.923 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.721 | $1.62 | $1.417 | $1.346 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5747838-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25553 pcs | Data sheet | 5747838-3AMPLIMITE Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tube |
| Other Names | 57478384 A32141 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | - | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Ground Strap | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.590" (14.99mm) |
