5747315-1

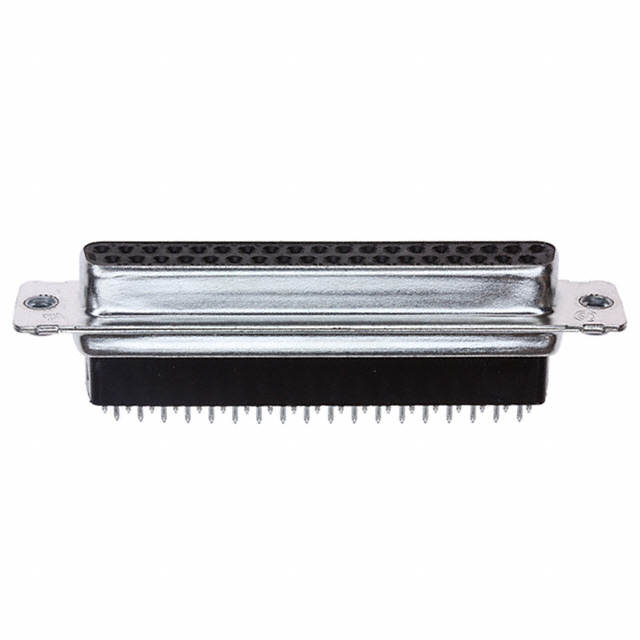

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5747315-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5747315-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5747315-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 37POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 28 pcs | 56 pcs | |
|---|---|---|---|---|---|
| $7.753 | $6.998 | $6.705 | $6.286 | ||
| 105 pcs | 252 pcs | 504 pcs | |||
| $6.076 | $5.741 | $5.573 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5747315-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 37POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6639 pcs | Data sheet | 5747315 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 4 (DC, C) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tube |
| Other Names | 57473151 A34063 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 37 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Flange Feature | Board Side (4-40) |
| Features | - | Detailed Description | 37 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
