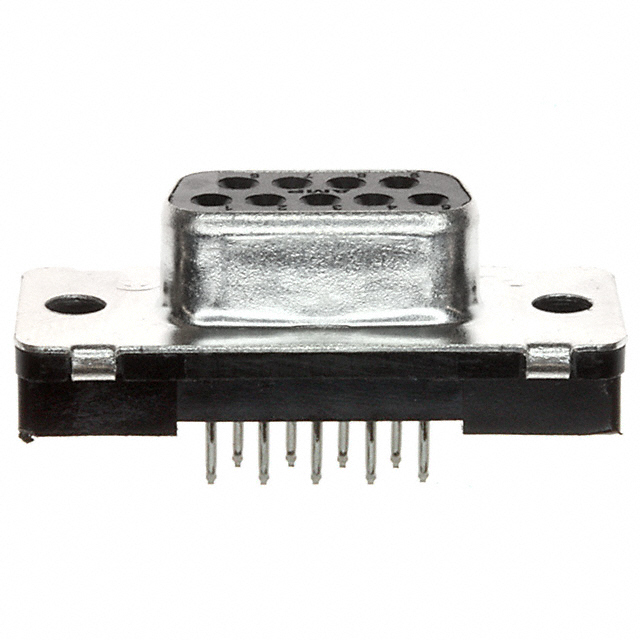

5747150-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5747150-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5747150-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5747150-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 9POS VERT SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 34 pcs | 51 pcs | 102 pcs |
|---|---|---|---|---|---|
| $1.978 | $1.899 | $1.741 | $1.662 | $1.583 | |
| 255 pcs | 510 pcs | 1003 pcs | 2516 pcs | ||
| $1.385 | $1.345 | $1.147 | $1.068 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5747150-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS VERT SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35250 pcs | Data sheet | 5747150 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tube |
| Other Names | 57471502 A32038 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
