5646959-1

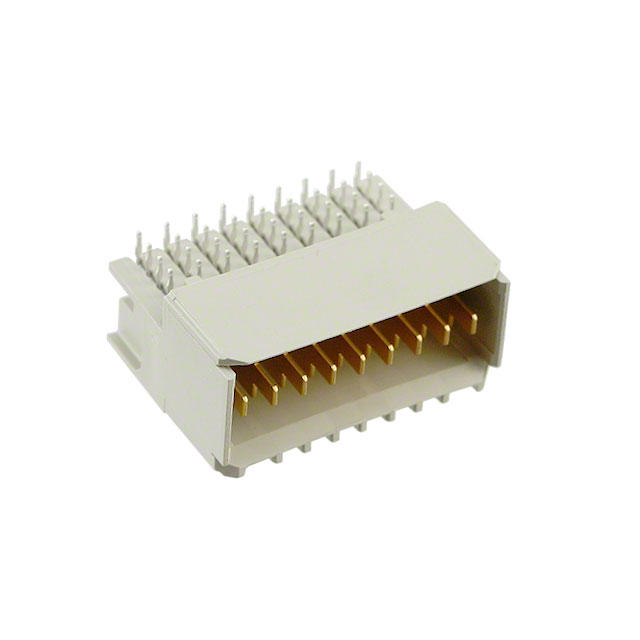

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5646959-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5646959-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5646959-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG 9POS UNIV PWR MODULE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 380 pcs | ||||
|---|---|---|---|---|---|
| $2.956 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5646959-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG 9POS UNIV PWR MODULE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13203 pcs | Data sheet | 5646959 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit | Series | UPM (Universal Power Modules) |
| Pitch | - | Packaging | Tube |
| Other Names | 5646959-1-ND 56469591 A101868 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Number of Columns | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Guide |
| Current Rating | - | Contact Layout, Typical | 9 Power |
| Contact Finish Thickness | - | Contact Finish | Gold or Gold-Palladium |
| Connector Usage | Backplane | Connector Type | Header, Male Blades |
| Connector Style | Blade Power | Color | Gray |
