5645384-1

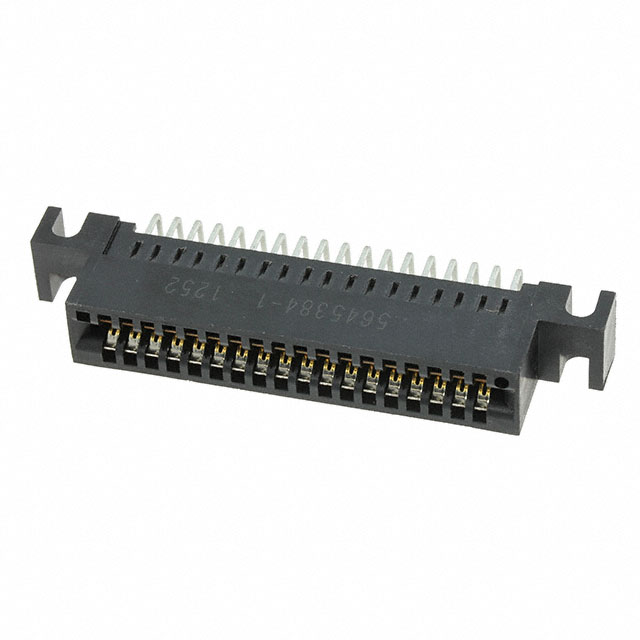

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5645384-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5645384-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5645384-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 36POS 0.100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.721 | $2.607 | $2.38 | $2.267 | ||
| 112 pcs | 336 pcs | 560 pcs | 1008 pcs | ||
| $2.154 | $1.927 | $1.814 | $1.587 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5645384-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 36POS 0.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21224 pcs | Data sheet | Card Edge Products Catalog5645384 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Standard Edge II | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 5645384-1-ND A139219 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 36 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | Features | - |
| Contact Type | - | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Color | Black | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
