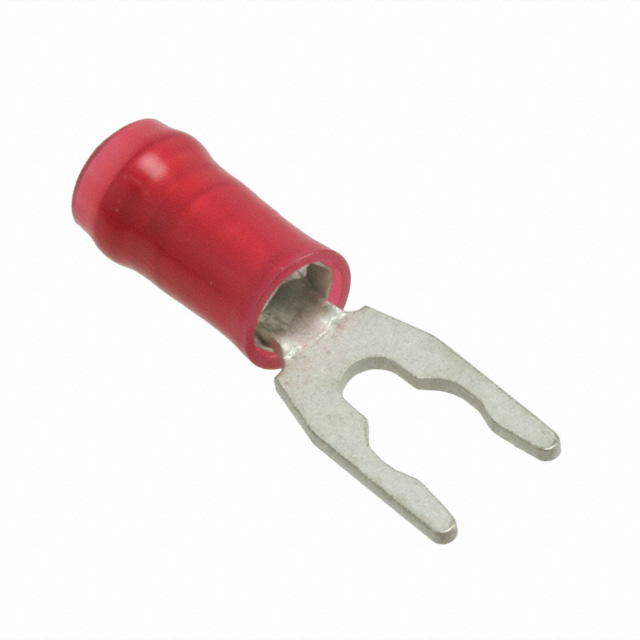

55768-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 55768-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 55768-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 55768-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #8 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.272 | $0.238 | $0.224 | $0.214 | $0.205 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.186 | $0.168 | $0.149 | $0.135 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 55768-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #8 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159263 pcs | Data sheet | 55768 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.244" (6.20mm) | Tongue Inside Opening | 0.164" (4.17mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Cut Tape (CT) | Other Names | A100669CT |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | 0.464" (11.79mm) | Length - Ring Center to Termination | 0.261" (6.63mm) |
| Length - Overall | 0.895" (22.73mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red 8 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
