5536504-1

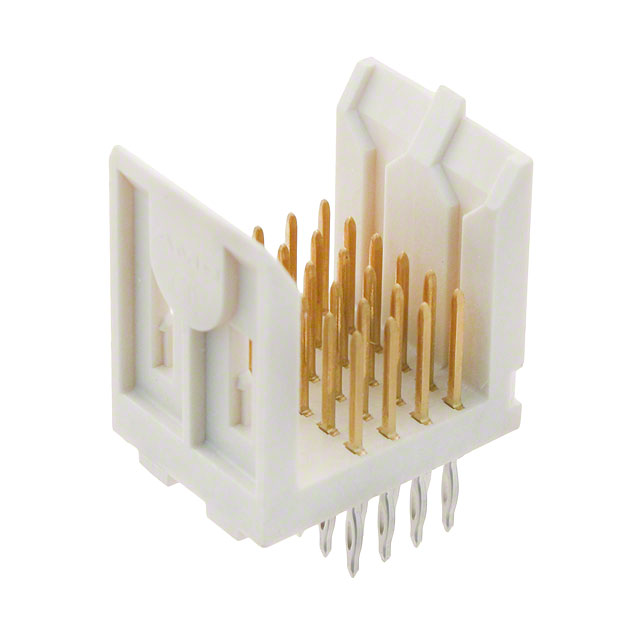

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5536504-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5536504-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5536504-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER VERT 2MM 24POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 48 pcs | 96 pcs | 144 pcs |
|---|---|---|---|---|---|
| $1.423 | $1.366 | $1.252 | $1.195 | $1.139 | |
| 288 pcs | 528 pcs | 1008 pcs | 2544 pcs | ||
| $0.996 | $0.968 | $0.825 | $0.768 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5536504-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER VERT 2MM 24POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47272 pcs | Data sheet | 5536504 |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Press-Fit | Series | Z-PACK |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 55365041 A31559 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 24 | Number of Columns | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | - | Contact Layout, Typical | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Pins |
| Connector Style | Futurebus | Color | Natural |
