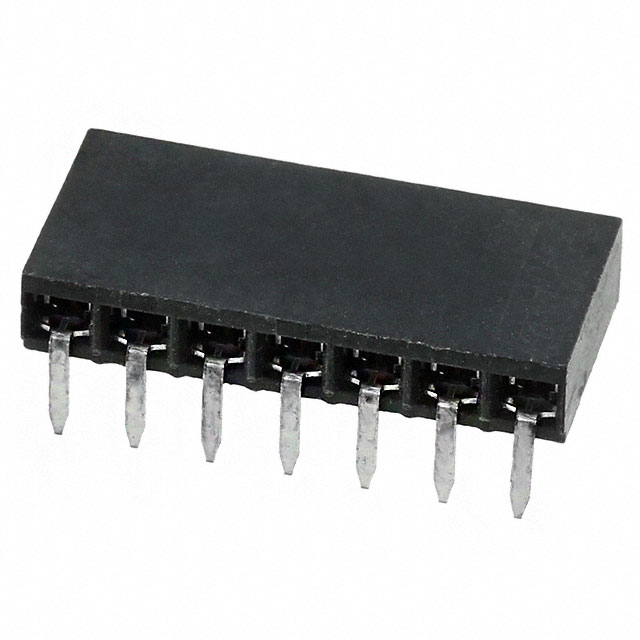

5535676-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5535676-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5535676-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5535676-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 07 MODII HORZ SR CE 100CL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1760 pcs | ||||
|---|---|---|---|---|---|
| $0.291 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5535676-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 07 MODII HORZ SR CE 100CL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79918 pcs | Data sheet | 5535676AMPMODU Interconnection Syst, Sec 5 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | AMPMODU Mod II | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 7 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.137" (3.47mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 7 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.115" (2.92mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
