5499345-4

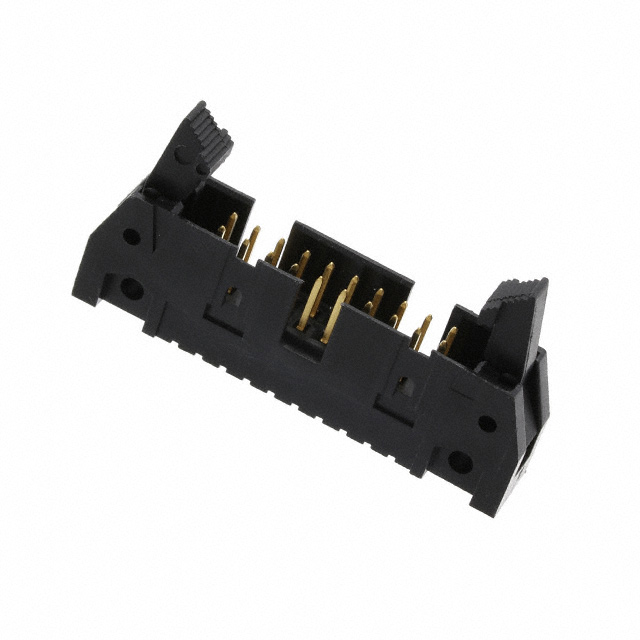

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5499345-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5499345-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5499345-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | A/L UNIV HDR 20P RA SHT LAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 48 pcs | 144 pcs | 528 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.149 | $1.891 | $1.719 | $1.461 | $1.246 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5499345-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | A/L UNIV HDR 20P RA SHT LAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30336 pcs | Data sheet | 5499345 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AMP-Latch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | A118491 | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.315" (8.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold-Palladium |
| Connector Type | Header | Applications | - |
