535541-7

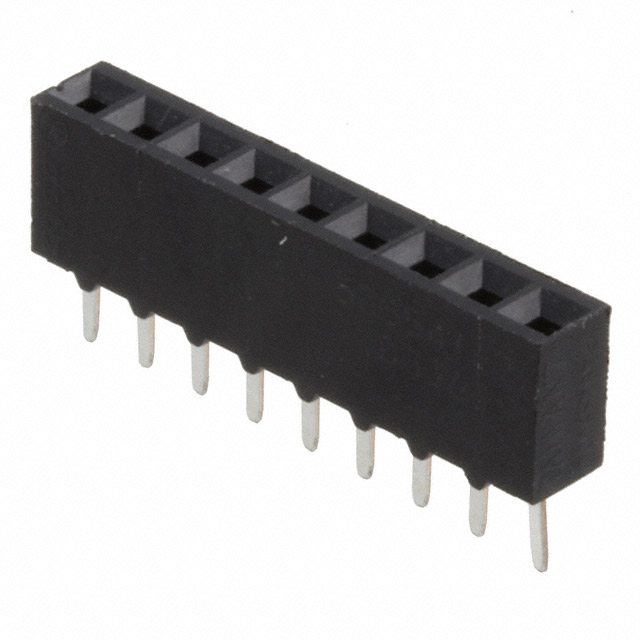

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 535541-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 535541-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 535541-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 09MODIVVRTSRCE100/115 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.344 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 535541-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 09MODIVVRTSRCE100/115 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 58087 pcs | Data sheet | 535541 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU Mod IV | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | A108448 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.265" (6.73mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 9 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
