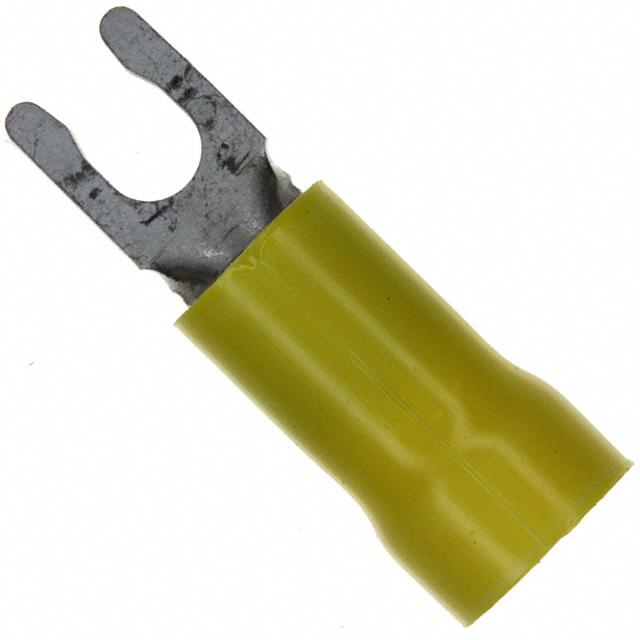

53246-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53246-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53246-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53246-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #6 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.251 | $0.237 | $0.213 | $0.19 | $0.182 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.166 | $0.158 | $0.13 | $0.119 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 53246-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #6 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 180409 pcs | Data sheet | 53246 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.250" (6.35mm) | Tongue Inside Opening | 0.140" (3.56mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud | Series | Plasti-Grip |
| Packaging | Bulk | Other Names | 53246-1-ND 532461 A27444 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Termination | 0.601" (15.27mm) | Length - Ring Center to Termination | 0.174" (4.42mm) |
| Length - Overall | 0.959" (24.36mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material | Brass | Contact Finish | Tin |
| Color | Yellow |
