52947-1

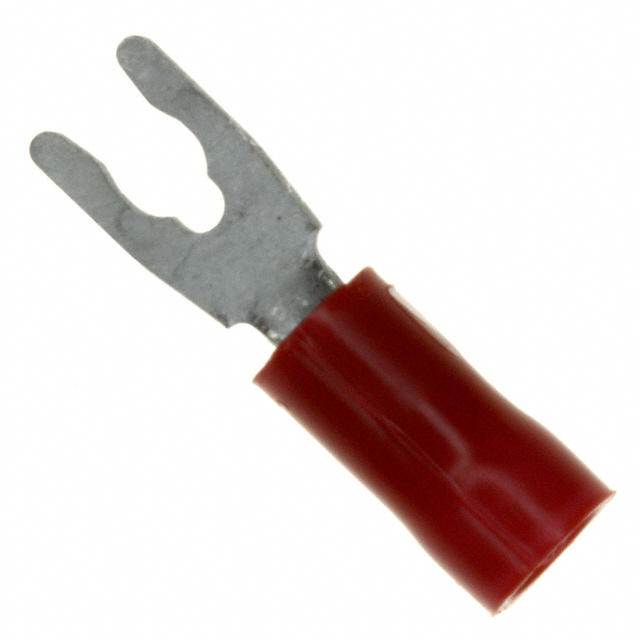

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52947-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52947-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52947-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #4 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.162 | $0.154 | $0.15 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52947-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #4 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 135654 pcs | Data sheet | 52947 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.203" (5.16mm) | Tongue Inside Opening | 0.203" (5.16mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 4 Stud | Series | Plasti-Grip |
| Packaging | Tape & Reel (TR) | Other Names | 52947-1-ND A0988TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 18 Weeks |
| Length - Termination | 0.416" (10.57mm) | Length - Ring Center to Termination | 0.250" (6.35mm) |
| Length - Overall | 0.811" (20.60mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red 4 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
