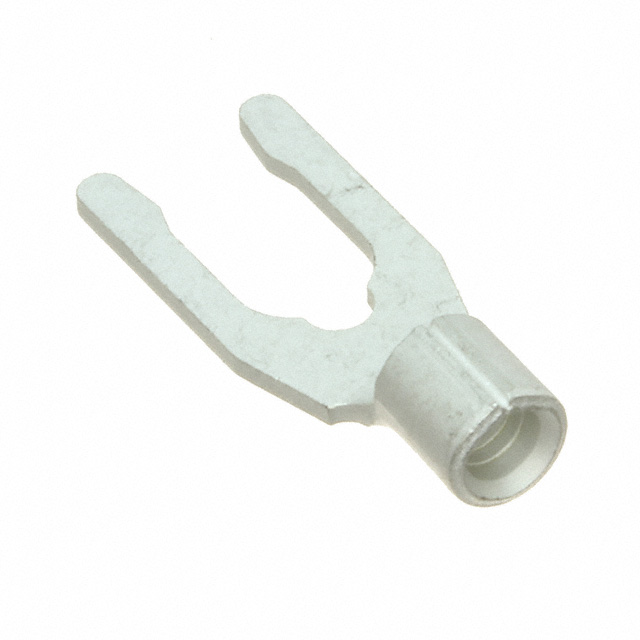

52713-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52713-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52713-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52713-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 14-16AWG #8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.159 | $0.149 | $0.128 | $0.109 | $0.105 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.094 | $0.09 | $0.075 | $0.068 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52713-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 14-16AWG #8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 318199 pcs | Data sheet | 52713 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.281" (7.14mm) | Tongue Inside Opening | 0.164" (4.17mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud | Series | Solistrand |
| Packaging | Bulk | Other Names | 52713-1-ND A136225 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 11 Weeks |
| Length - Termination | 0.191" (4.85mm) | Length - Ring Center to Termination | 0.270" (6.86mm) |
| Length - Overall | 0.756" (19.20mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | - | Insulation | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Detailed Description | 8 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material | Phosphor Bronze | Contact Finish | Tin |
| Color | - |
