5228226-1

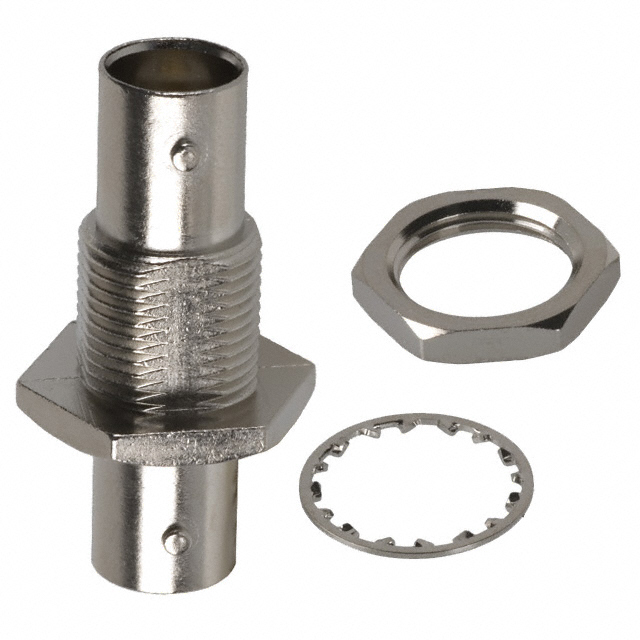

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5228226-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5228226-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5228226-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN ADAPT JACK-JACK BNC 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.904 | $2.782 | $2.54 | $2.419 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.298 | $2.056 | $1.935 | $1.693 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5228226-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK BNC 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22119 pcs | Data sheet | 5228226 |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 52282261 A33802 |
Operating Temperature | - |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Features | - | Fastening Type | Bayonet Lock, Bayonet Lock |
| Dielectric Material | Polyethylene (PE) | Detailed Description | Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohm |
| Convert To (Adapter End) | BNC Jack, Female Socket | Convert From (Adapter End) | BNC Jack, Female Socket |
| Conversion Type | Same Series | Center Gender | Female to Female |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Body Material | Zinc | Body Finish | Nickel |
| Adapter Type | Jack to Jack | Adapter Series | BNC to BNC |
