5225059-3

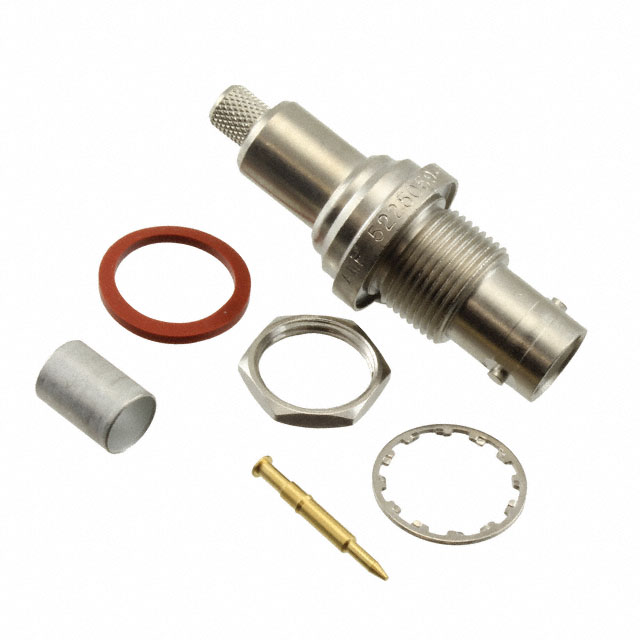

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5225059-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5225059-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5225059-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SHV JACK STR CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $15.919 | $14.371 | $13.769 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.908 | $12.478 | $11.79 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5225059-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SHV JACK STR CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3310 pcs | Data sheet | 5225059 |
| Category | Connectors, Interconnects | Voltage Rating | 5000V |
| Shield Termination | Crimp | Series | Coaxicon |
| Packaging | Bulk | Other Names | 5225059-3-ND A122878 |
| Operating Temperature | -65°C ~ 200°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | Non-Constant |
| Housing Color | Silver | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SHV Connector Jack, Male Pin Non-Constant Panel Mount Crimp | Contact Termination | Crimp |
| Connector Type | Jack, Male Pin | Connector Style | SHV |
| Center Contact Plating | Gold | Center Contact Material | - |
| Cable Group | RG-59, 59A, 59B, 62, 62A, 62B, 124, 140, 210 | Body Material | - |
| Body Finish | Nickel |
