521383-3

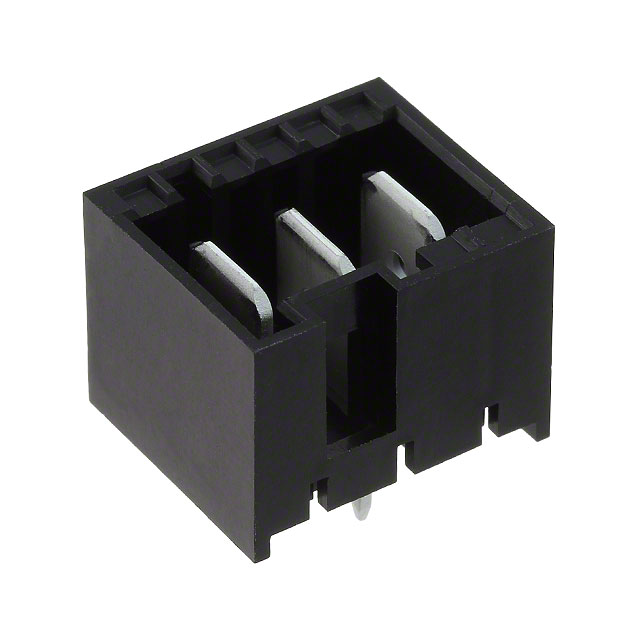

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 521383-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 521383-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 521383-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | ASSY DIN VERT RAST5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.282 | $0.263 | $0.202 | $0.175 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.145 | $0.127 | $0.118 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 521383-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | ASSY DIN VERT RAST5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 198891 pcs | Data sheet | 521383 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A119384 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Board Guide, Glow Wire Compliant | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 3 position 0.197" (5.00mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
