5149011-4

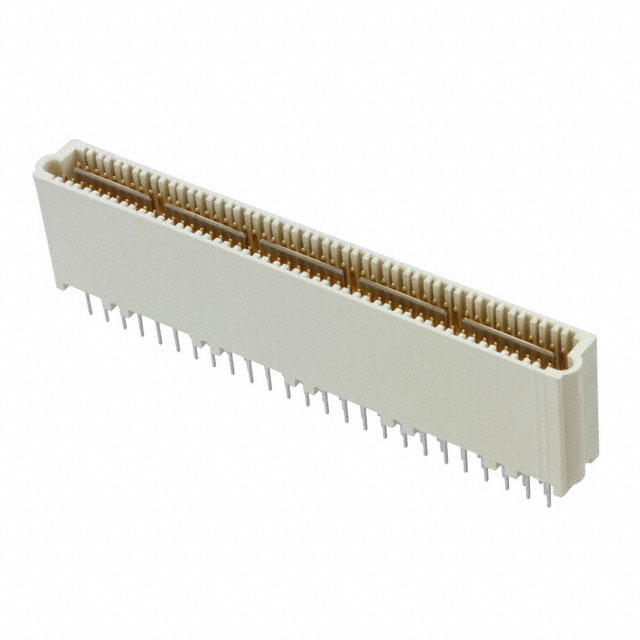

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5149011-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5149011-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5149011-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 100POS VERT 30GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 352 pcs | ||||
|---|---|---|---|---|---|
| $9.505 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5149011-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 100POS VERT 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3516 pcs | Data sheet | 5149011 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Strip |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 5149011-4-ND A115304 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 18.75mm | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.648" (16.46mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Ground Bus (Plane) |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 100 position 0.050" (1.27mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Plug | Applications | - |
