5-829492-0

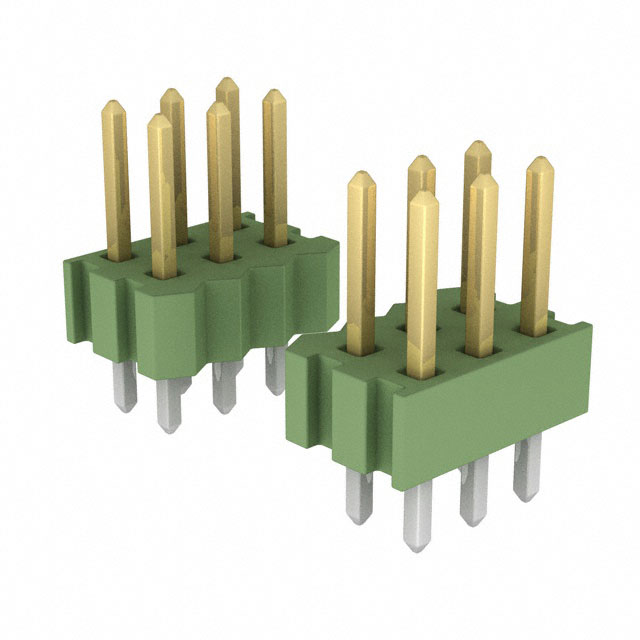

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-829492-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-829492-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-829492-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | MOD-2 PIN HDR.3X50P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $10.379 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-829492-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | MOD-2 PIN HDR.3X50P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3360 pcs | Data sheet | 829492 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.500" (12.70mm) |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 150 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 150 position 0.100" (2.54mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.124" (3.15mm) | Contact Length - Mating | 0.276" (7.00mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
