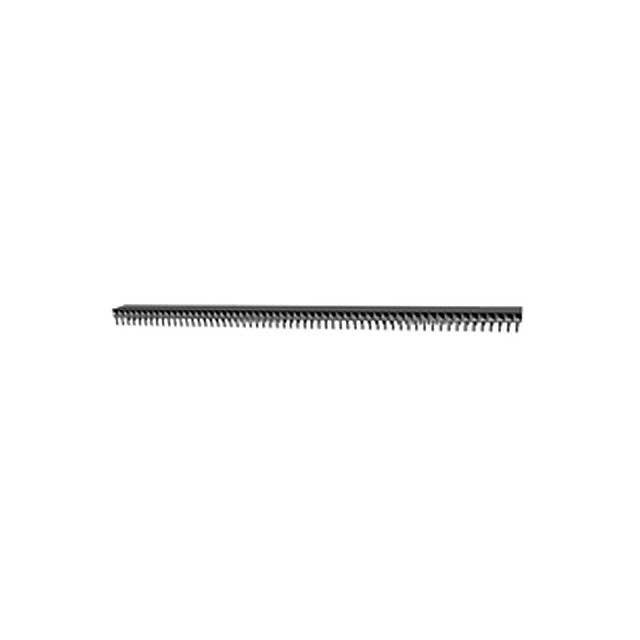

5-535676-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-535676-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-535676-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-535676-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 58 MODII HORZ SR CE 100CL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 165 pcs | ||||
|---|---|---|---|---|---|
| $1.995 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-535676-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 58 MODII HORZ SR CE 100CL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15471 pcs | Data sheet | 535676 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | AMPMODU Mod II | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 58 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.137" (3.47mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 58 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.115" (2.92mm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
