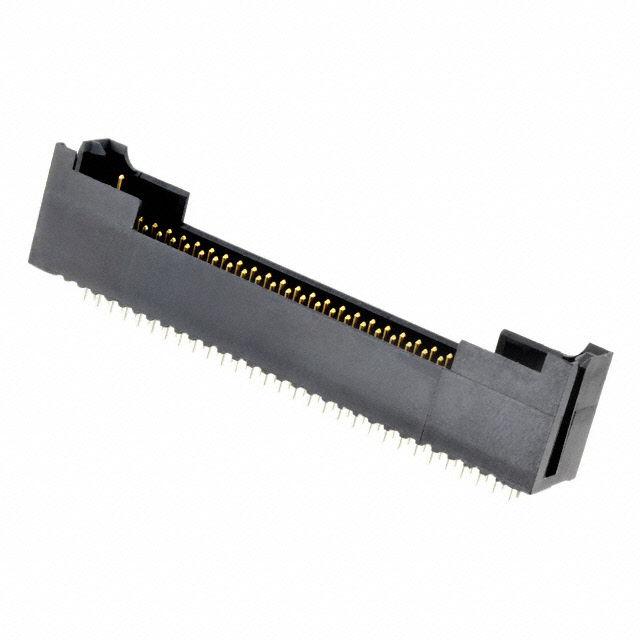

5-535552-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-535552-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-535552-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-535552-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 60MODII2PCHDRDRSHRDMFBL ROHS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 504 pcs | ||||
|---|---|---|---|---|---|
| $2.72 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-535552-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 60MODII2PCHDRDRSHRDMFBL ROHS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11869 pcs | Data sheet | 535552-5 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.590" (14.99mm) |
| Other Names | A108463 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.620" (15.75mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 60 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.180" (4.57mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
