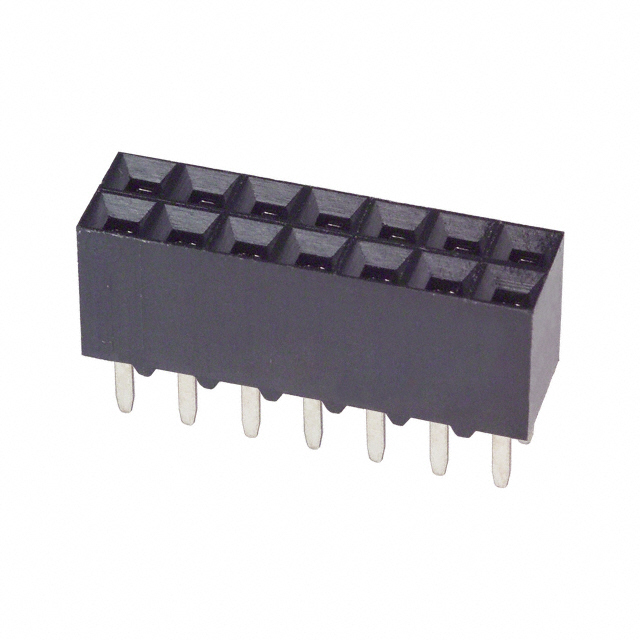

5-534998-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-534998-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-534998-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-534998-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 14POS .100 VERT DUAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 32 pcs | 128 pcs | ||
|---|---|---|---|---|---|
| $1.182 | $1.038 | $0.944 | |||
| 512 pcs | 1024 pcs | 5024 pcs | |||
| $0.802 | $0.684 | $0.614 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-534998-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 14POS .100 VERT DUAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49167 pcs | Data sheet | 534998 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU Mod IV | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 55349987 A32957 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.265" (6.73mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 14 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
