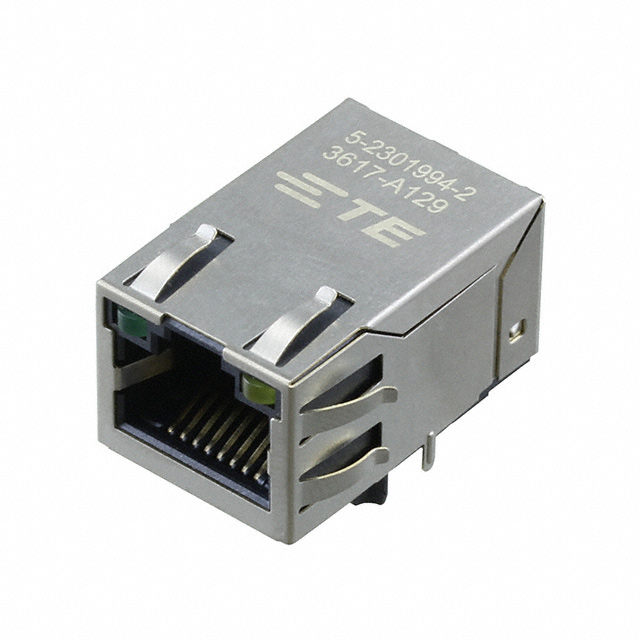

5-2301994-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-2301994-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-2301994-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-2301994-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MAGJACK 1PORT 100 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.19 | $2.098 | $1.916 | $1.824 | $1.733 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.551 | $1.459 | $1.277 | $1.213 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-2301994-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32059 pcs | Data sheet | 5-2301994-2 DrawingRJ45 Jacks Spec SheetRJ45 Jacks Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | - |
| Packaging | Tray | Other Names | A126251 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Liquid Crystal Polymer (LCP) | Height Above Board | 0.544" (13.82mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Panel Mount, Through Hole 10/100 Base-T, AutoMDIX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-T, AutoMDIX |
