5-1825945-1

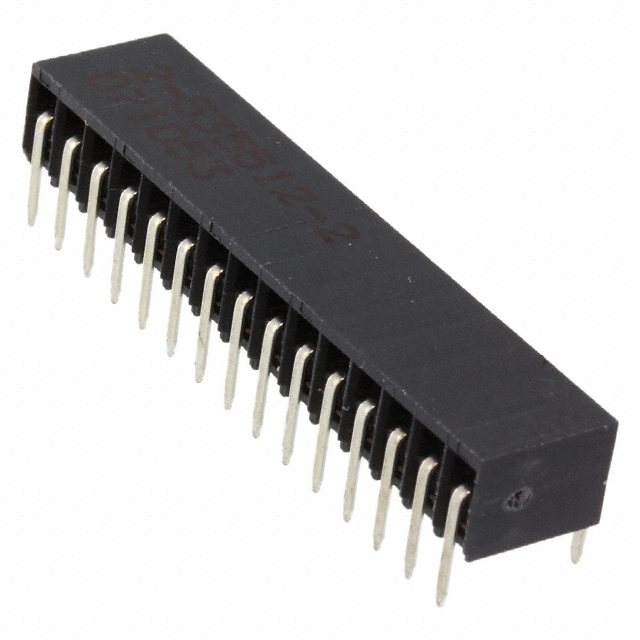

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-1825945-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-1825945-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-1825945-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | AMPMODU MOD II HORIZ, 25/30 SELE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6000 pcs | ||||
|---|---|---|---|---|---|
| $0.593 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-1825945-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | AMPMODU MOD II HORIZ, 25/30 SELE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61676 pcs | Data sheet | 1825945 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU Mod II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | 25 | Number of Positions | 30 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.238" (6.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 30 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.115" (2.92mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
