5-1814823-1

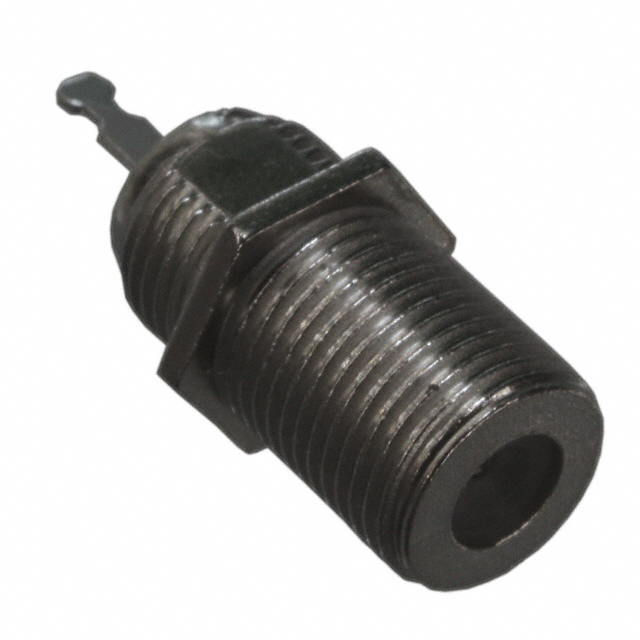

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-1814823-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-1814823-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-1814823-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN F JACK STR 75 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.665 | $0.604 | $0.567 | $0.542 | $0.518 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.468 | $0.431 | $0.37 | $0.345 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-1814823-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN F JACK STR 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68104 pcs | Data sheet | 1814823 |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | ZDC, Greenpar |
| Packaging | Bulk | Other Names | 518148231 A97610 |
| Operating Temperature | -65°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 1GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polypropylene (PP) | Detailed Description | F Type Connector Jack, Female Socket 75 Ohm Panel Mount Solder Tab |
| Contact Termination | Solder Tab | Connector Type | Jack, Female Socket |
| Connector Style | F Type | Center Contact Plating | Tin |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Zinc Alloy | Body Finish | Nickel |
