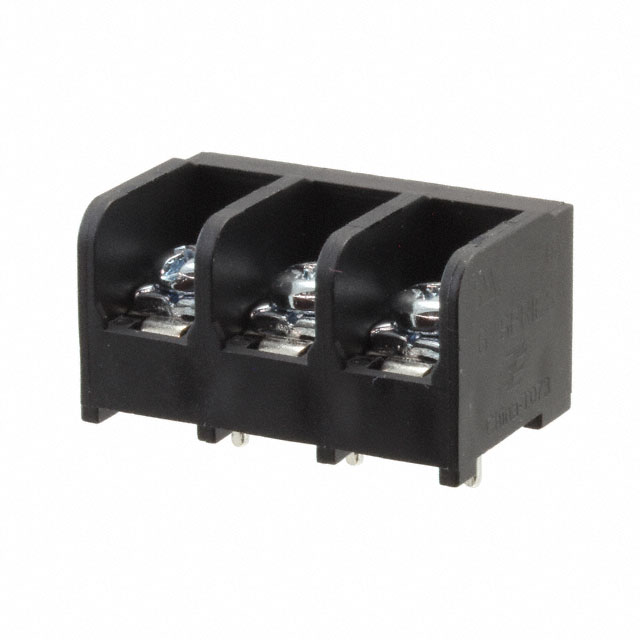

5-1546686-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-1546686-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-1546686-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-1546686-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN BARRIER STRIP 3CIRC 0.375" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.231 | $0.939 | $0.88 | $0.782 | $0.765 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.706 | $0.638 | $0.565 | $0.531 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-1546686-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BARRIER STRIP 3CIRC 0.375" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61819 pcs | Data sheet | 6PCV-xx-006 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 12-22 AWG |
| Voltage Rating | 300V | Top Termination | Screws with Captive Plate |
| Terminal Screw Material | Steel | Terminal Screw Finish | Zinc, Clear Chromate |
| Terminal Block Type | Barrier Block | Series | #6, Buchanan |
| Pitch | 0.375" (9.53mm) | Packaging | Bulk |
| Other Names | 5-1546686-6-ND A136160 |
Operating Temperature | 105°C |
| Number of Wire Entries | 3 | Number of Rows | 1 |
| Number of Circuits | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | 3 Circuit 0.375" (9.53mm) Barrier Block Connector, Screws with Captive Plate | Current Rating | 25A |
| Color | Black | Bottom Termination | PC Pin |
| Barrier Type | 3 Wall (Tri) |
