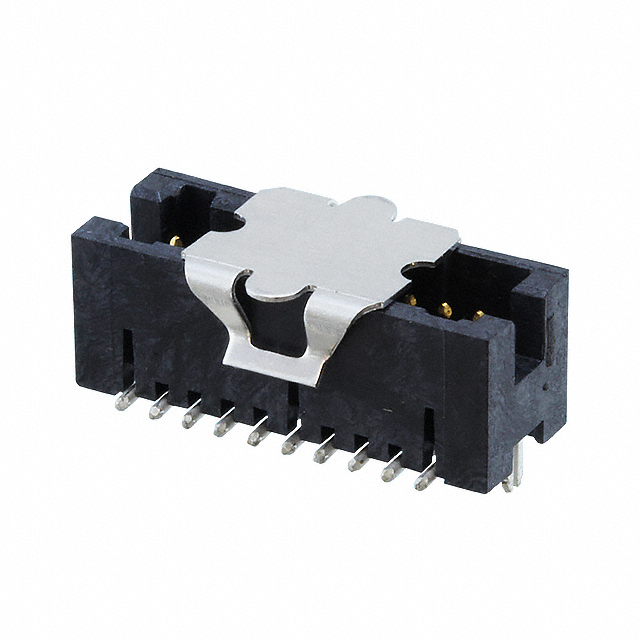

5-147381-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-147381-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-147381-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-147381-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 20POS VERT .050 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.878 | $0.848 | $0.817 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-147381-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 20POS VERT .050 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47367 pcs | Data sheet | 147381 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU 50/50 Grid |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 5-147381-2-ND A111245TR |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.35mm | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.226" (5.74mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.050" (1.27mm) |
| Current Rating | 0.5A per Contact | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
