5-147100-6

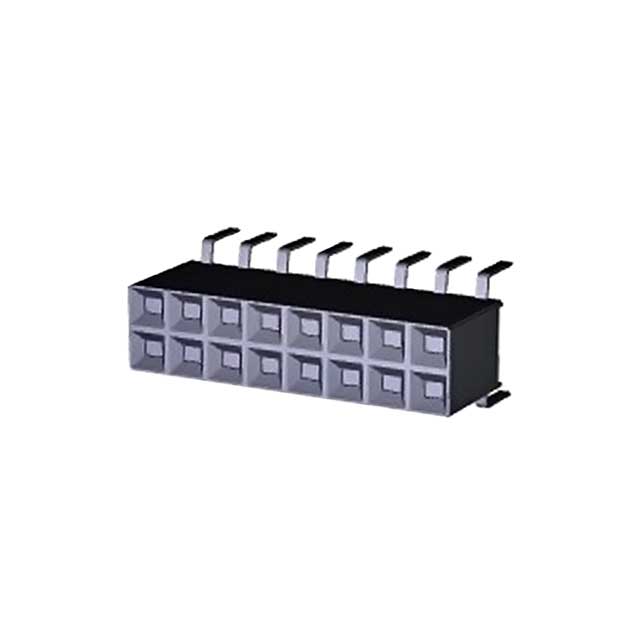

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-147100-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-147100-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-147100-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 16 MODIV VRT DR DE .300 WIDE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1400 pcs | ||||
|---|---|---|---|---|---|
| $0.576 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-147100-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 16 MODIV VRT DR DE .300 WIDE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58426 pcs | Data sheet | 147100 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU Mod IV | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.265" (6.73mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 16 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Tin | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
