487576-9

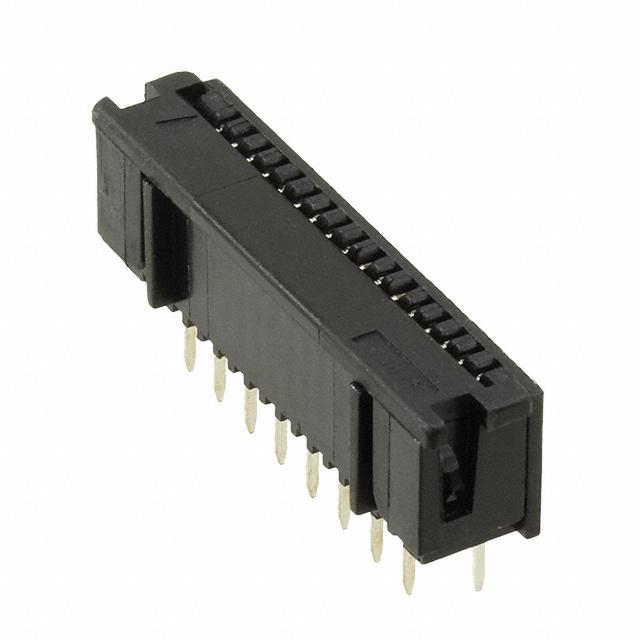

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 487576-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 487576-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 487576-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FFC VERT 17POS 1.27MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 19 pcs | 38 pcs | 57 pcs | 114 pcs |
|---|---|---|---|---|---|
| $0.695 | $0.63 | $0.591 | $0.566 | $0.54 | |
| 266 pcs | 513 pcs | 1007 pcs | 2508 pcs | ||
| $0.488 | $0.45 | $0.386 | $0.36 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 487576-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FFC VERT 17POS 1.27MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93032 pcs | Data sheet | 487576 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Series | AMPMODU |
| Pitch | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 487576-9-ND A115208 Q1519761 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 17 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 15 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic | Housing Color | Black |
| Height Above Board | 0.310" (7.87mm) | Flat Flex Type | FFC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.10mm ~ 0.31mm |
| Detailed Description | 17 Position FFC Connector Contacts, Vertical, 1 Sided 0.050" (1.27mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 150.0µin (3.81µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | Thermoplastic |
| Actuator Color | Black |
