487223-3

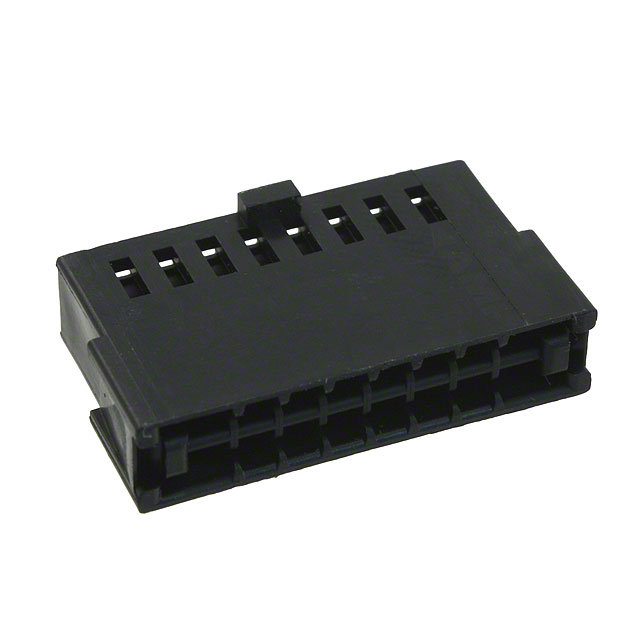

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 487223-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 487223-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 487223-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FFC RCPT HSG 16POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.267 | $1.217 | $1.116 | $1.065 | $1.014 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.887 | $0.862 | $0.735 | $0.685 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 487223-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FFC RCPT HSG 16POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51378 pcs | Data sheet | 487223 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 22-32 AWG |
| Voltage Rating | 300V | Series | - |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 4872233 | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 16 |
| Note | Contacts Not Included | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Locking Feature | Locking Ramp | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.025" ~ 0.056" (0.64mm ~ 1.42mm) | Housing Material | Thermoplastic |
| Housing Color | Black | Flat Flex Type | FFC, Discrete Wire |
| Features | - | FFC, FCB Thickness | 0.05-0.13mm |
| Detailed Description | Housing FFC, Discrete Wire Housing for Female Contacts Connector Locking Ramp 16Pos 0.100" (2.54mm) | Current Rating | 1.5A |
| Connector Type | Housing for Female Contacts |
