4-794677-0

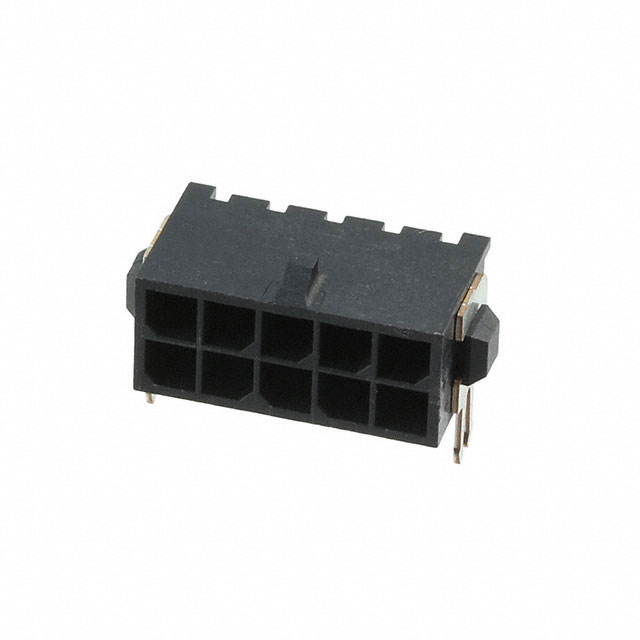

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-794677-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-794677-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4-794677-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 10POSMICROMNLASSY R/A THRU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 195 pcs | 585 pcs | |
|---|---|---|---|---|---|
| $0.739 | $0.671 | $0.575 | $0.479 | ||
| 1170 pcs | 5070 pcs | 10140 pcs | |||
| $0.411 | $0.364 | $0.356 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4-794677-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 10POSMICROMNLASSY R/A THRU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57378 pcs | Data sheet | 794677 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro MATE-N-LOK |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | A108395 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.118" (3.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
