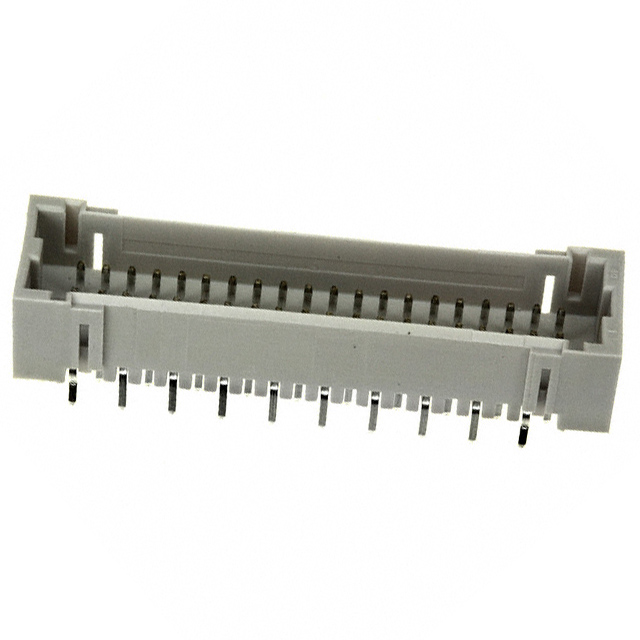

4-292208-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-292208-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-292208-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4-292208-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 40POS VERT 1.5MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 400 pcs | ||
|---|---|---|---|---|---|
| $0.828 | $0.752 | $0.583 | |||
| 800 pcs | 1200 pcs | 5200 pcs | |||
| $0.522 | $0.461 | $0.408 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4-292208-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 40POS VERT 1.5MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95492 pcs | Data sheet | 292208 |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini CT |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A99737 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.291" (7.40mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 40 position 0.059" (1.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.114" (2.90mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
